ESS-100A-16-C-OR-00
SMICO
Energy Storage Connector, Product range: ESS socket, Color: orange, Wire cross section: 16 mm², Rated voltage: 1500V, Rated current: 100 A, Connection method: Crimp, Contact type: Needle

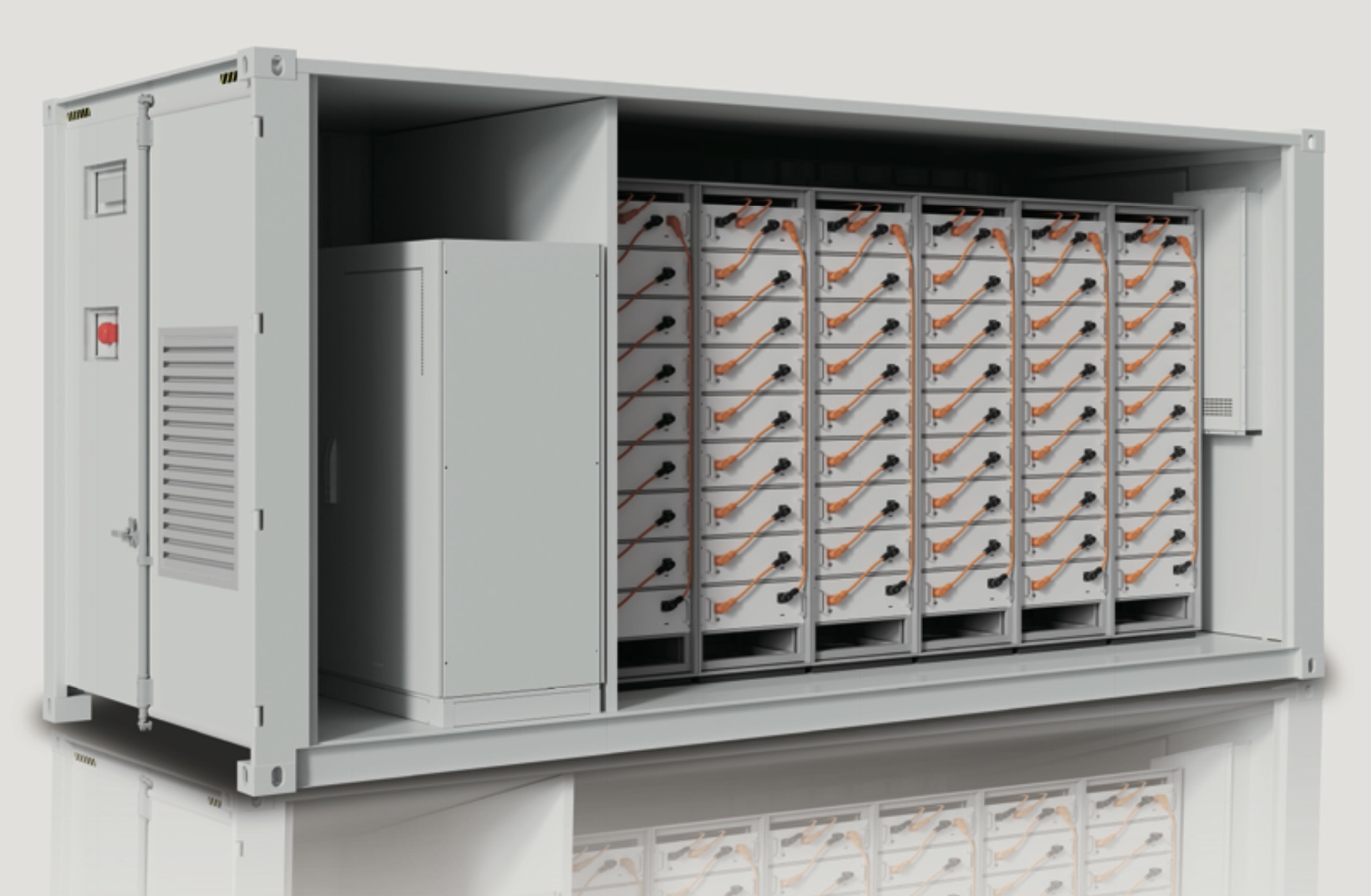

Install your energy storage systems quickly, safely, and cost-effectively for applications up to 1,500 V – with pluggable battery connections via busbar connection or via battery pole connector. Benefit from the advantages of both connection technologies for front or rear connection.

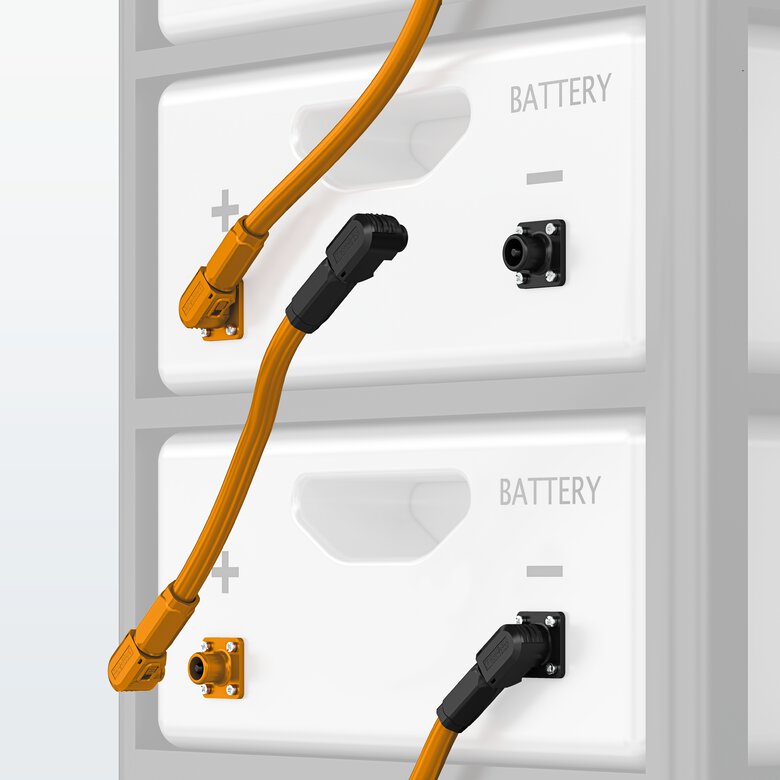

Device and cable connectors that are protected against polarity reversal are ideal for use in energy storage systems. Featuring a rotatable design, touch protection, and mechanical coding, the connectors provide a high degree of flexibility and safety when it comes to connecting battery poles.
Can be rotated 360°: ideal for flexible cable outlets
No incorrect plugging: battery connection protected against polarity reversal by mechanical coding
Safe installation: touch-protected battery poles even when not plugged in
Various color versions: facilitates identification of battery poles

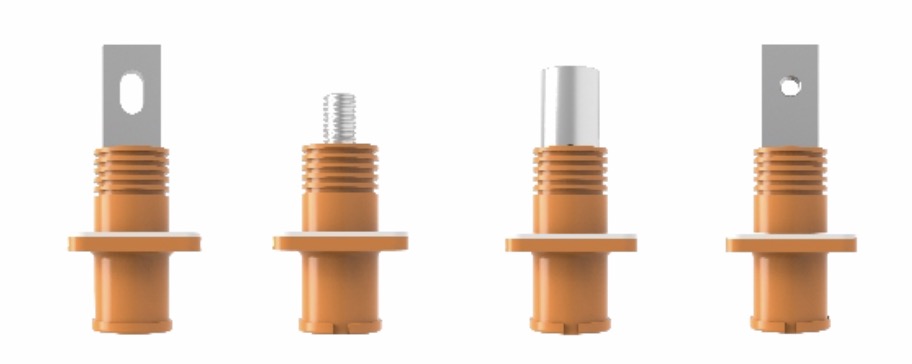

Flexible installation with different device connection technologies
☑ Exclusive patents
☑ IP67 protection
☑ With safety locking latch
☑ The plug can rotate 360°after assembled
☑ The socket is with hand-proof protection
☑ With color-coded and mechnism-coded desgin avoiding misplug
| Wiring mode | Crimp |
| Protection grade (pair plug) | IP67 |
| Ambient temperature (operation) | -40°C ~ +125°C |
| Ambient temperature (storage/transportation) | -40°C ~ +80°C |
| Altitude | 2000m |
| Plugging times | 100 |
| Insertion force | <60N |
| Pullout force | >10N |
| Insulating material | Nylon |
| Halogen-free | Compliance with standards |
| Environmental protection matters | REACH/RoHS compliant |
| Sealing ring material | Silicone |
| Contact material | Copper alloy |
| Shell color | Orange |
| Flammability rating | UL94V-0 |
| Pollution level | 3 |
| Rated current | 100A / UL DC1500V |
| Insulation resistance | >5000MΩ |
| Contact resistance | ≤0.5mΩ |
